Camera Control
The Camera Control view is displayed when a Camera object is selected. In addition to the Image Pane, this view consists of a single region of control panes.
Control Panes

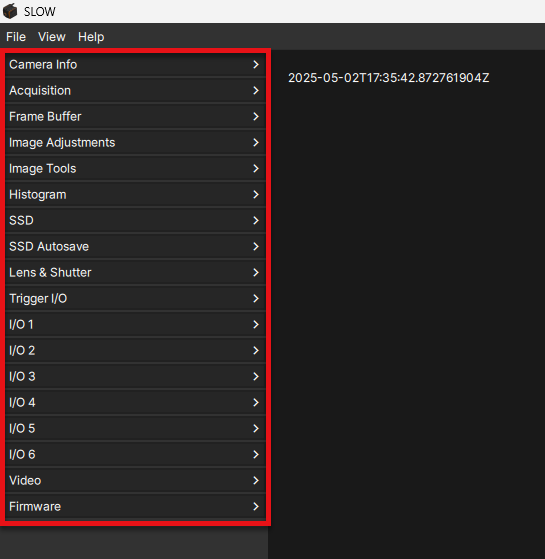

The Camera Control Panes on the left side of the SLOW software provide access to essential camera controls and live image adjustments. Each pane groups related settings, making it easy to configure various aspects of the camera system.
A small arrow at the top right of each pane allows it to be expanded or collapsed. Collapsing a pane does not disable its functionality, it simply hides its contents, allowing focus on the controls most relevant to the current workflow. The state of the pane (expanded or collapsed) is unique to each Camera object and will be remembered when switching between objects.
The control panes in view can be adjusted by clicking and dragging them up or down with the mouse or by hovering over them and using the scroll wheel.
| Control Pane | Description |
|---|---|
| Camera Info | Provides details about the connected Camera |
| Acquisition | Controls sensor settings, calibration, & recording |
| Frame Buffer | Controls partitions and displays buffer status |
| Image Adjustments | Controls image adjustments on raw images |
| Image Tools | Controls image transformations and helper filters |
| SSD | Controls SSD and displays status |
| Lens & Shutter | Controls lens settings and camera shutter |
| Trigger I/O | Controls dedicated trigger I/O settings and manipulations |
| I/O # | Controls User I/O settings and manipulations |
| Video | Controls SDI video output settings |
| Firmware | Displays firmware version and controls firmware updates |
