E9 Hardware

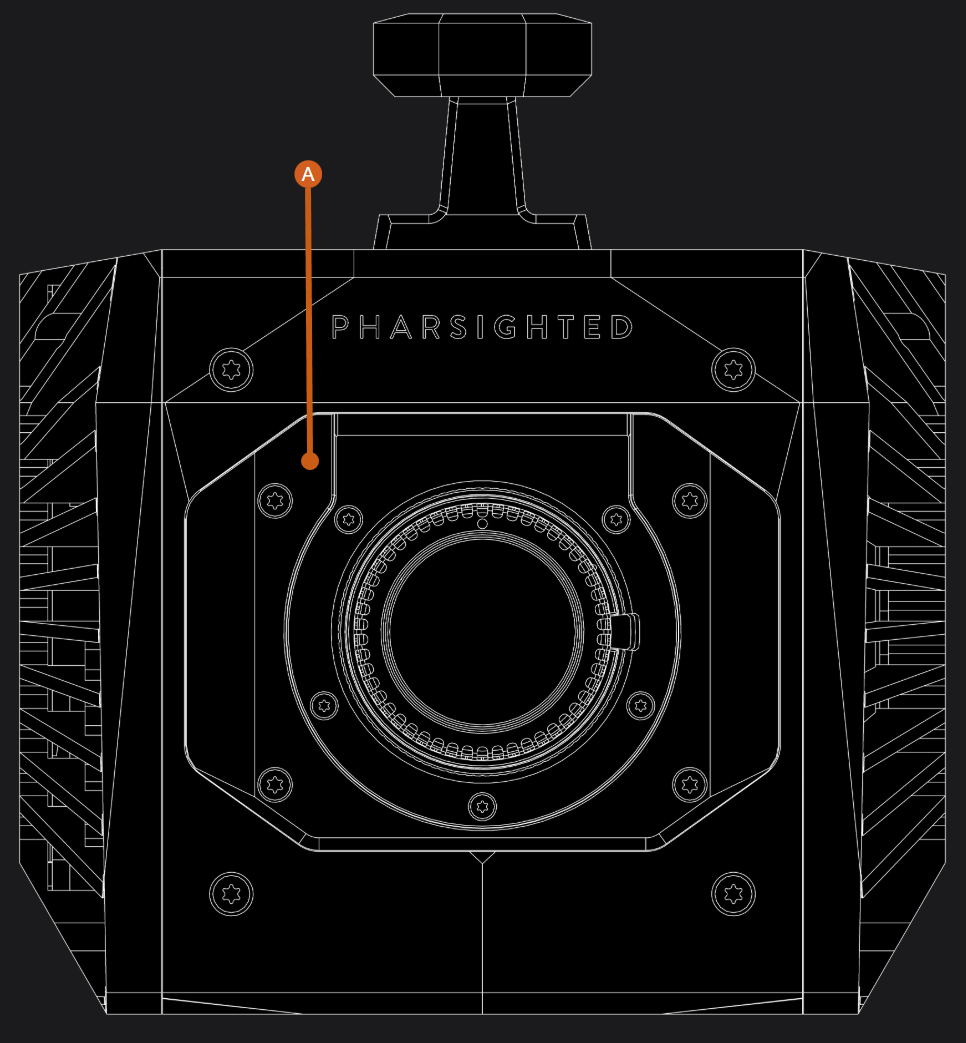

Camera Front
| Item | Description | |
|---|---|---|
| A | Lens Mount | Interface with various interchangable lenses |
Camera Rear
| Item | Description | |
|---|---|---|
| A | Trigger Button | Frame buffer trigger button |
| B | Trigger I/O | Trigger signal input / output BNC connector |
| C | Analog In | Analog signal input BNC connector |
| D | SDI | SDI video output BNC conenctor |
| E | Ethernet | Rugged RJ45 ethernet connector |
| F | Primary Power | Primary power input connector |
| G | Backup Power | Backup power input connector |
| H | User I/Os | User input / output BNC connectors |
| I | SSD Slot | U.2 NVMe SSD drive slot |
| J | Power Button | Camera power ON / OFF button |

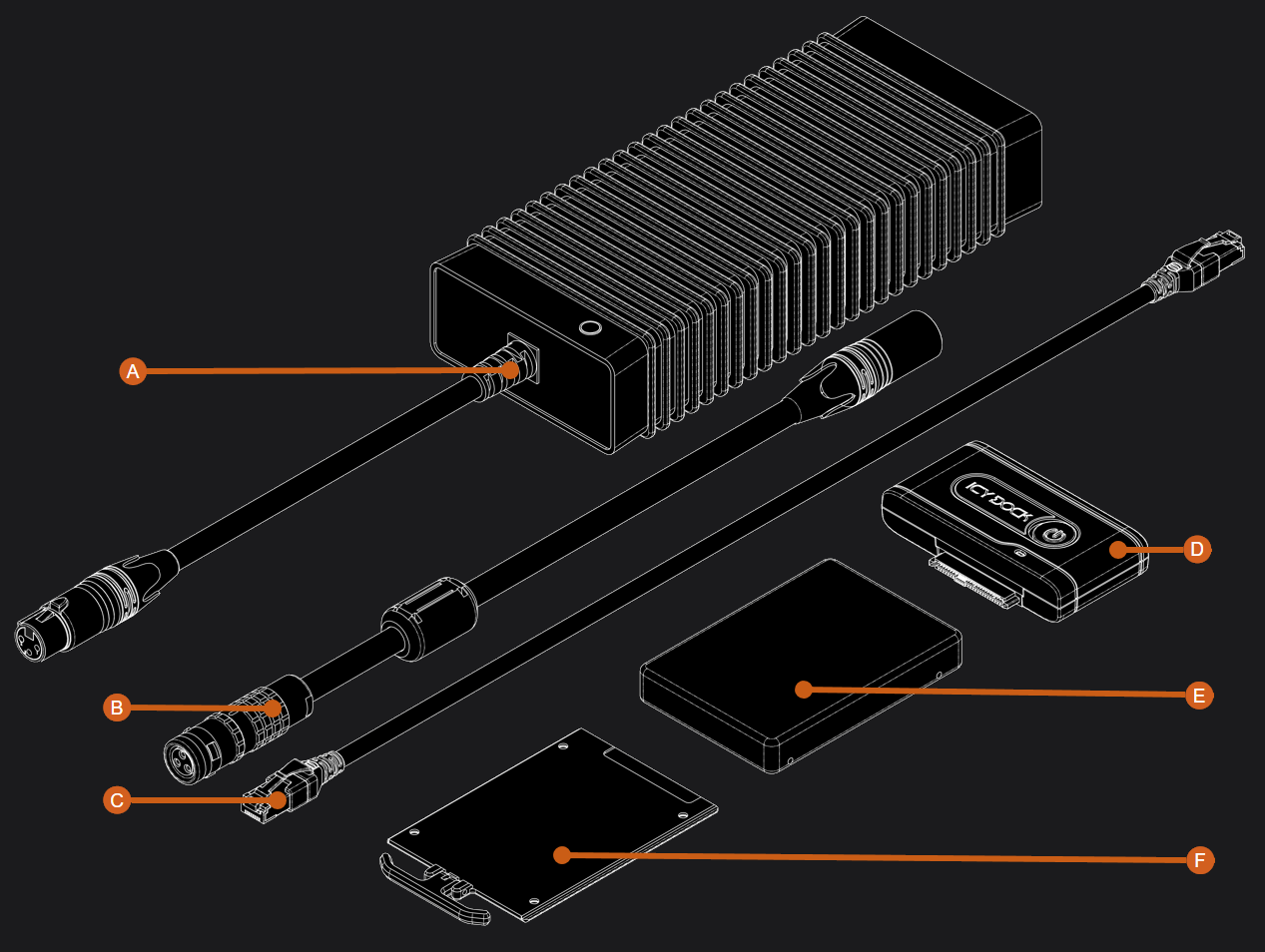

Standard Accessories Kit
| Item | Description | |
|---|---|---|
| A | Power Supply | 24VDC, 280W power supply |
| B | Power Supply / Battery Adapter Cable | Adapter cable for power supply |
| C | Ethernet Cable | Cat6A ethernet for camera to computer connectivity |
| D | USB Adapter / SSD Dock | Dock for SSD |
| E | U.2 SSD | U.2 NVMe solid-state-drive for image storage |
| F | SSD Tray | Required mounting hardware for U.2 SSD |
