SDI
E9 cameras include an SDI video output, which can be used to monitor the live image or playback takes from the camera frame buffer via a compatible video monitor.

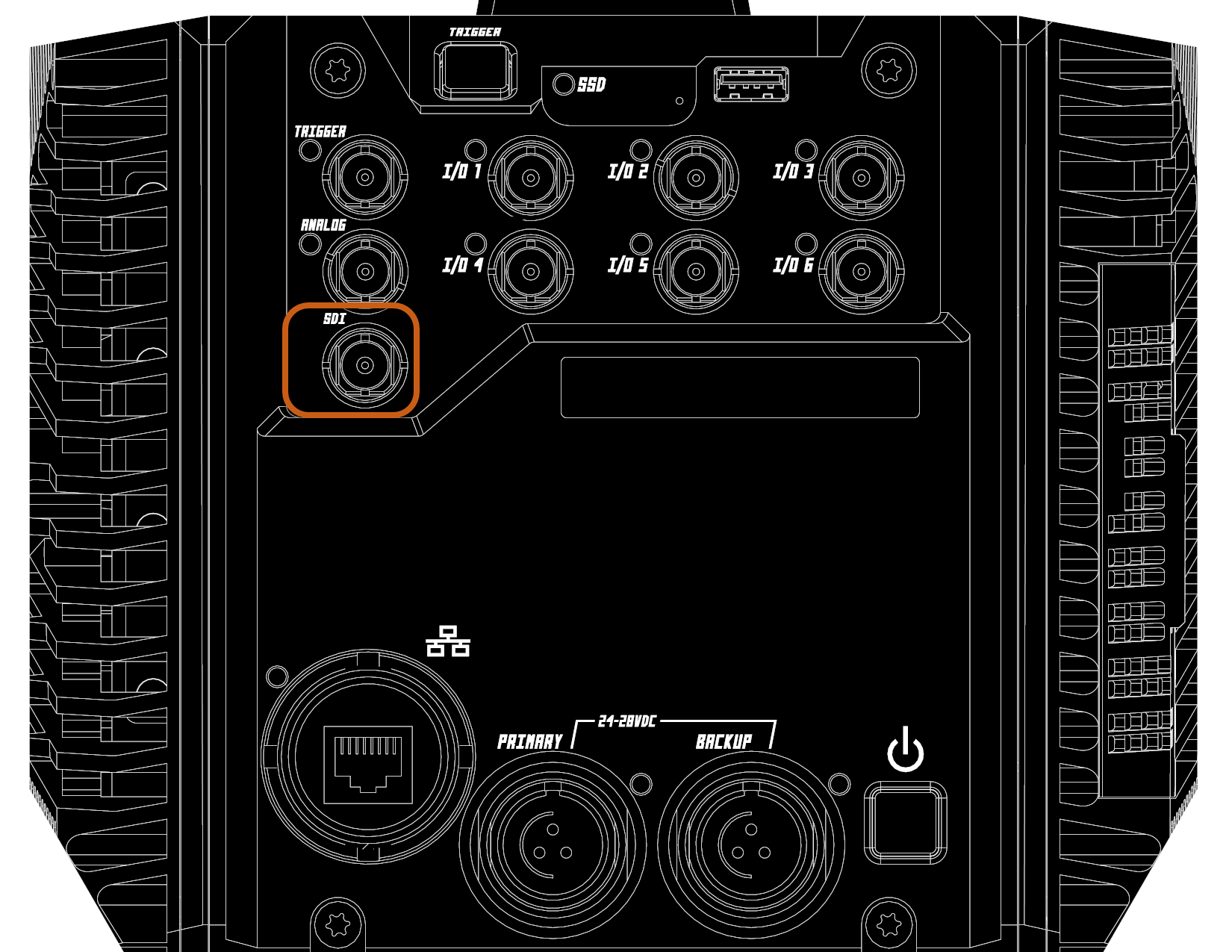

Location
Connector
BNC (75-ohm)
Formats
HD-SDI Video
| Supported Formats |
|---|
| 1280 x 720p23.98 |
| 1280 x 720p24 |
| 1280 x 720p25 |
| 1280 x 720p29.97 |
| 1280 x 720p30 |
| 1280 x 720p50 |
| 1280 x 720p59.94 |
| 1280 x 720p60 |
| 1920 x 1080p23.98 |
| 1920 x 1080p24 |
| 1920 x 1080p25 |
| 1920 x 1080p29.97 |
| 1920 x 1080p30 |
