User I/Os

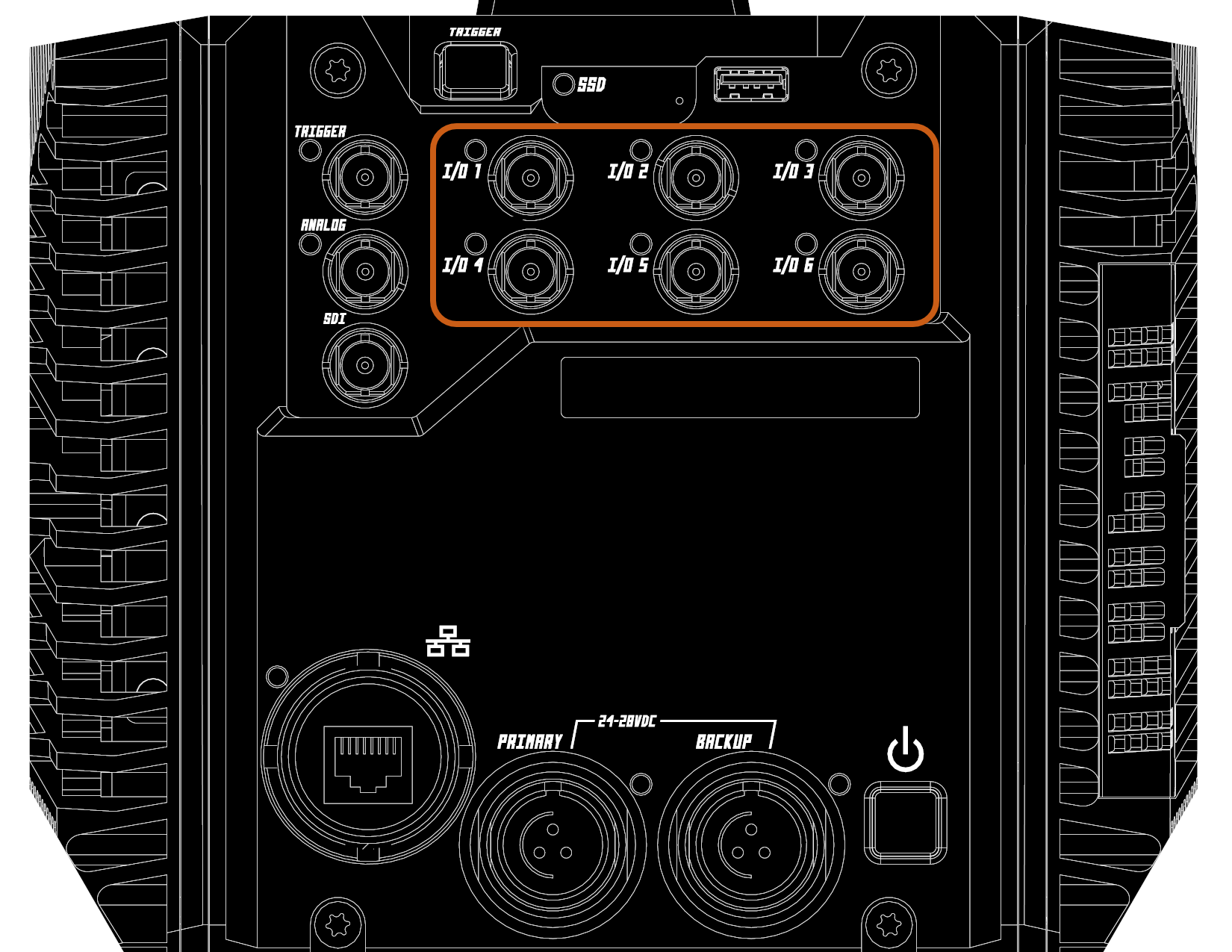

Location
Specification
5V TTL
BNC connector
Available Signals
| Signal | Function |
|---|---|
| Event 1 | Used to tag events within the frame metadata. Input only, 5V TTL |
| Event 2 | Used to tag events within the frame metadata. Input only, 5V TTL |
| Frame Sync | Used to synchronize external devices to the camera's frame clock or vice versa. Input accepts 5V TTL. Outputs 5V TTL square pulse with positive width of 250ns (51 clocks). |
| IRIG | Used for timecode synchronization with an IRIG signal from another device or vice versa. Accepts or outputs IRIG-B DCLS format. |
| Ready | Represents when camera is recording but not yet triggered (active for pre-trigger recording only) |
| Record | Represents when camera is recording (active for both pre and post-trigger recording) |
| Shutter | Represents camera's exposure period |
| Trigger | Used to start and/or stop the recording, dependent on the frame buffer's trigger offset |
Mode, signal polarity, pulse delay, & pulse width are all configurable from within the SLOW software I/O pane.
